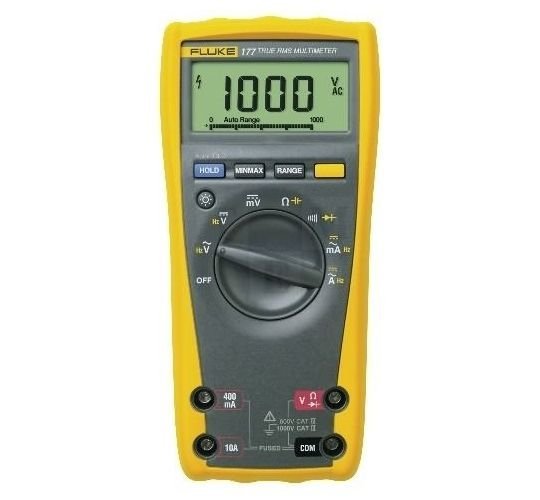

177 True RMS Multimetre Ölçü Cihazı
- Fluke 177 True RMS Multimetre Ölçü Cihazı
- True-RMS digital multimeter with the features professional technicians prefer
- Increases productivity with manual and automatic ranging, Display Hold, Auto Hold, and Min/Max-average recording
- Measures AC and DC voltage to 1000 V
- Delivers accurate True-RMS AC current and voltage plus frequency, capacitance, resistance, continuity and diode measurements
- Safety rated CAT III 1000 V, CAT IV 600 V
- Read more
- Ürün Genel Özelikleri:
|
Specifications |
||
|
Voltage DC |
Accuracy1 |
±(0.09% + 2) |
|
Max. resolution |
0.1 mV |
|
|
Maximum |
1000 V |
|
|
Voltage AC |
Accuracy1 |
±(1.0% + 3) |
|
Max. resolution |
0.1 mV |
|
|
Maximum |
1000 V |
|
|
Current DC |
Accuracy1 |
±(1.0% + 3) |
|
Max. resolution |
0.01 mA |
|
|
Maximum |
10 A |
|
|
Current AC |
Accuracy1 |
±(1.5% + 3) |
|
Max. resolution |
0.01 mA |
|
|
Maximum |
10 A |
|
|
Resistance |
Accuracy1 |
±(0.9% + 1) |
|
Max. resolution |
0.1 Ω |
|
|
Maximum |
50 MΩ |
|
|
Capacitance |
Accuracy1 |
±(1.2% + 2) |
|
Max. resolution |
1 nF |
|
|
Maximum |
10,000 µF |
|
|
Frequency |
Accuracy1 |
±(0.1% + 1) |
|
Max. resolution |
0.01 Hz |
|
|
Maximum |
100 kHz |
|
|
1. Accuracies are best accuracies for each function |
||
|
Environmental Specifications |
||
|
Operating temperature |
-10°C to +50°C |
|
|
Storage temperature |
-30°C to +60°C |
|
|
Humidity (without condensation) |
0% – 90% (0°C –
35°C) |
|
|
Safety Specifications |
||
|
Overvoltage category |
EN 61010–1 to 1000 V
CAT III |
|
|
Agency approvals |
UL, CSA, TÜV listed and VDE Pending |
|
|
Mechanical and General Specifications |
||
|
Size |
43 x 90 x 185 mm |
|
|
Weight |
420 g |
|
|
Warranty |
Lifetime |
|
|
Battery life |
Alkaline ~200 hours typical, without backlight |
|
