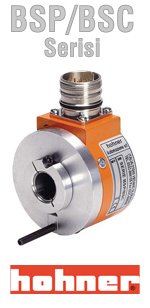

BSP-2L8P3UW/050 Encoder
9.741,40 TL
Kategori
Marka
Stok Kodu
AHNQTZ35
Fiyat
222,88 EUR + KDV
* 980,23 TL den başlayan taksitlerle!
- BSP-2L8P3UW/050 Encoder
- Mechanics Data:
- Cover: Lacquered aluminium
- Body: Aluminium
- Solid shaft: Stainless steel
- Bearings: 2, ballraces
- Weight: Approx.300gr.
- Protection: IP64
- Rpm: 6000 Max
- Torque: 5Ncm
- Inertia: 100gcm²
- Shaft loading: Axial 50N - Radial 50N (the value decrease when the number of pulses increase)
- Electronics Data:
- Power supply: from 5 to 24V depends on the electronics circuit
- Current consumption: 40/80mA depends on the electronics circuit
- Permissible load: 40mA
- Frequency: 300KHz
- Protections: Against short circuit, reversal polarity
- Operating Temp.: -20/+60°C
- HOHNER, BSP/BSC Series Encoders
