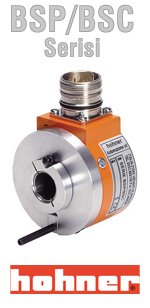

BSP-2L8P3UW/200 Encoder
9.741,40 TL
Kategori
Marka
Stok Kodu
ACGMR578
Garanti Süresi
12 Ay
Fiyat
222,88 EUR + KDV
* 980,23 TL den başlayan taksitlerle!
BSP-2L8P3UW/200 Encoder
Mechanics Data:
Cover: Lacquered aluminium
Body: Aluminium
Solid shaft: Stainless steel
Bearings: 2, ballraces
Weight: Approx.300gr.
Protection: IP64
Rpm: 6000 Max
Torque: 5Ncm
Inertia: 100gcm²
Shaft loading: Axial 50N - Radial 50N (the value decrease when the number of pulses increase)
Electronics Data:
Power supply: from 5 to 24V depends on the electronics circuit
Current consumption: 40/80mA depends on the electronics circuit
Permissible load: 40mA
Frequency: 300KHz
Protections: Against short circuit, reversal polarity
Operating Temp.: -20/+60°C
