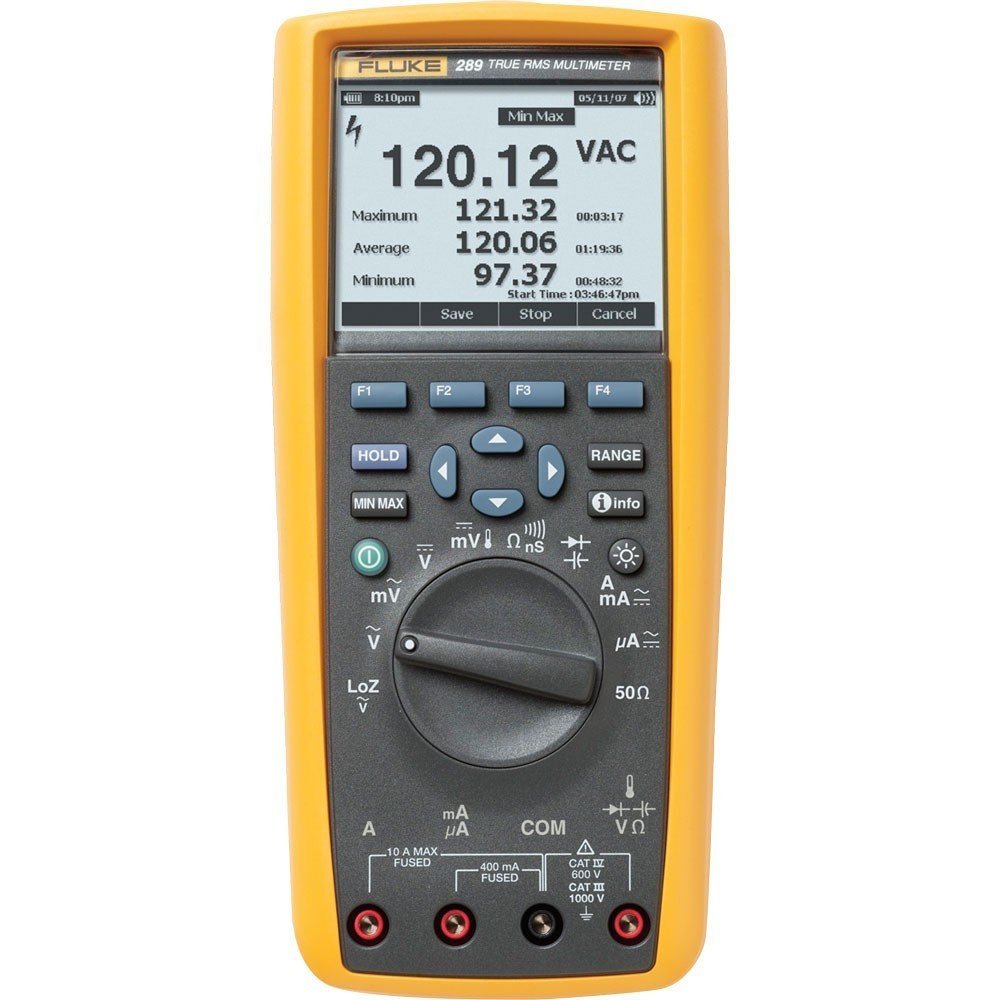

Fluke 289 50.000 Count AC+DC True RMS Multimetre Ölçü Cihazı

Function

Range and Resolution

Basic Accuracy

DC volts

50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V

0.025 %

AC volts

0.4 % (True-RMS)

DC current

500.00 μA, 5000.0 μA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A

0.05 %

AC current

0.6 % (True-RMS)

Temperature (excluding probe)

-200.0 °C to 1350.0 °C (-328.0 °F to 2462.0 °F)

1.0 %

Resistance

50.000 Ω, 500.00 Ω, 5.0000 kΩ, 50.000 kΩ, 500.00 kΩ,5.0000 MΩ, 50.00 MΩ, 500.0 MΩ

0.05 %

Capacitance

1.000 nF,10.00 nF 100.0 nF, 1.000 μF, 10.00 μF, 100.0 μF, 1000 μF, 10.00 mF, 100 mF

1.0 %

Frequency

99.999 Hz, 999.99 Hz, 9.9999 kHz, 99.999 kHz, 999.99 kHz

0.005 % + 1

Connectivity

Optional infrared connector via Fluke ir3000 FC

General Specifications

Maximum voltage between any terminal and earth ground

1000 V

Battery type

6 AA alkaline batteries, NEDA 15A IECLR6

Battery life

100 hours minimum, 200 hours in logging mode

Temperature

Operating: -20 °C to 55 °C; Storage: -40 °C to 60 °C

Relative humidity

0 to 90 % (0 t 37 °C), 0 to 65 % (37 °C to 45 °C), 0 to 45 % (45 °C to 55 °C)

Electromagnetic compatibility

EMC EN61326-1

Vibration

Random vibration per MIL-PRF-28800F Class 2

Shock

1 meter drop per IEC/EN 61010-1 3rd Edition

Size (HxWxL)

22.2 cm x 10.2 cm x 6 cm (8.75 in x 4.03 in x 2.38 in)

Weight

870.9 g (28 oz)

Multiple on screen displays

Yes

LoZ

Yes

50 ohm range

Yes

Filter for measurements on motor drives

Yes

True-RMSAC bandwidth

100 kHz

dBV/dBm

Yes

DC mV resolution

1 μV

Megohm range

Up to 500 MΩ

Conductance

50.00 nS

Continuity beeper

Yes

Temperature (°C and °F)

-200 °C to 1350 °C

Battery/fuse access

Yes/Yes

Elapse time clock

Yes

Time of day clock

Yes

Min-Max-Avg

Yes
