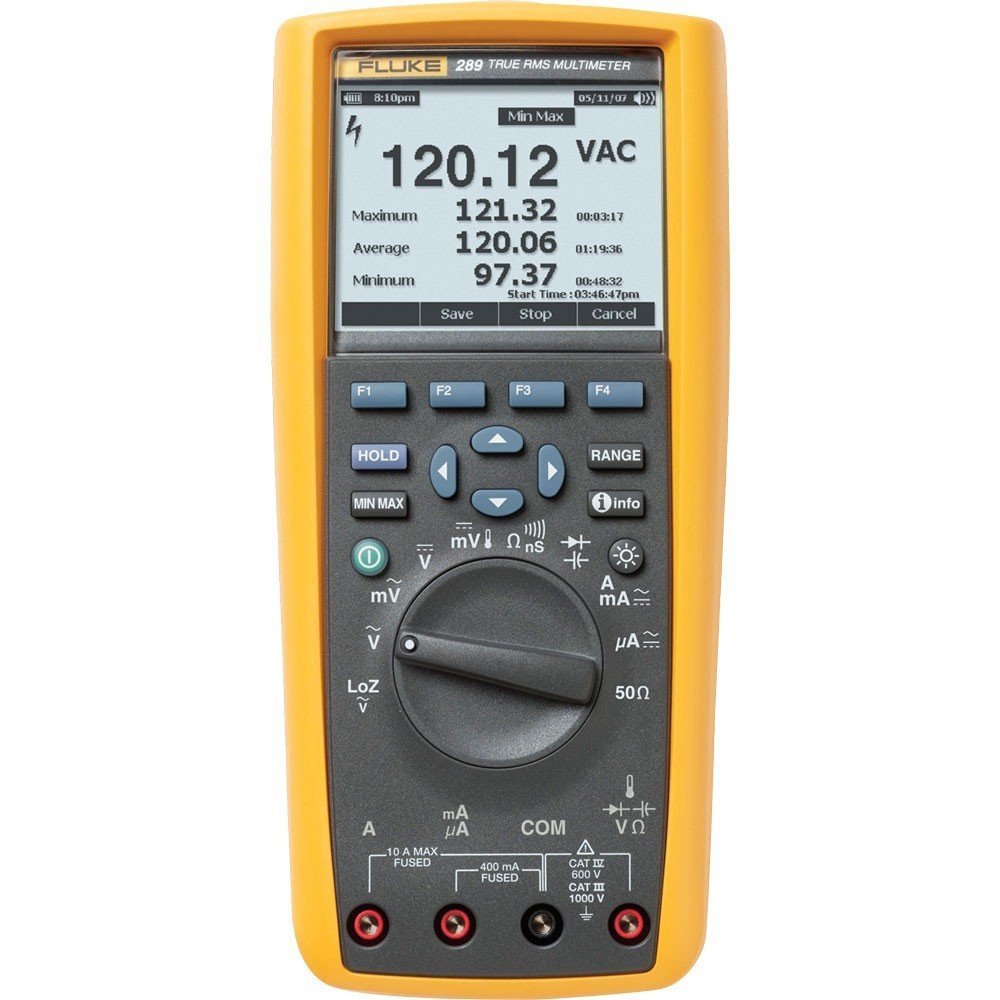

Fluke 289 True-RMS Data Logging Multimeter Ölçü Cihazı
- Fluke 289 True-RMS Data Logging Multimeter Ölçü Cihazı
- Özelikleri:
- Max.Dc Akım:10 Amper
- Max.Ac Akım:10 Amper
- Max.Dc Volt:1000 Dc Volt
- Max.Ac Volt:1000 Ac Volt
- True RMS:Var
- Kullanım Alanı:El Tipi Multimetre
- Ürün Genel Özelikleri:
|
Function |
Range and Resolution |
Basic Accuracy |
|
DC volts |
50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V |
0.025 % |
|
AC volts |
0.4 % (True-RMS) |
|
|
DC current |
500.00 μA, 5000.0 μA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A |
0.05 % |
|
AC current |
0.6 % (True-RMS) |
|
|
Temperature (excluding probe) |
-200.0 °C to 1350.0 °C (-328.0 °F to 2462.0 °F) |
1.0 % |
|
Resistance |
50.000 Ω, 500.00 Ω, 5.0000 kΩ, 50.000 kΩ, 500.00 kΩ,5.0000 MΩ, 50.00 MΩ, 500.0 MΩ |
0.05 % |
|
Capacitance |
1.000 nF,10.00 nF 100.0 nF, 1.000 μF, 10.00 μF, 100.0 μF, 1000 μF, 10.00 mF, 100 mF |
1.0 % |
|
Frequency |
99.999 Hz, 999.99 Hz, 9.9999 kHz, 99.999 kHz, 999.99 kHz |
0.005 % + 1 |
|
Connectivity |
Optional infrared connector via Fluke ir3000 FC |
|
|
General Specifications |
|
|
Maximum voltage between any terminal and earth ground |
1000 V |
|
Battery type |
6 AA alkaline batteries, NEDA 15A IECLR6 |
|
Battery life |
100 hours minimum, 200 hours in logging mode |
|
Temperature |
Operating: -20 °C to 55 °C; Storage: -40 °C to 60 °C |
|
Relative humidity |
0 to 90 % (0 t 37 °C), 0 to 65 % (37 °C to 45 °C), 0 to 45 % (45 °C to 55 °C) |
|
Electromagnetic compatibility |
EMC EN61326-1 |
|
Vibration |
Random vibration per MIL-PRF-28800F Class 2 |
|
Shock |
1 meter drop per IEC/EN 61010-1 3rd Edition |
|
Size (HxWxL) |
22.2 cm x 10.2 cm x 6 cm (8.75 in x 4.03 in x 2.38 in) |
|
Weight |
870.9 g (28 oz) |
|
Multiple on screen displays |
Yes |
|
LoZ |
Yes |
|
50 ohm range |
Yes |
|
Filter for measurements on motor drives |
Yes |
|
True-RMSAC bandwidth |
100 kHz |
|
dBV/dBm |
Yes |
|
DC mV resolution |
1 μV |
|
Megohm range |
Up to 500 MΩ |
|
Conductance |
50.00 nS |
|
Continuity beeper |
Yes |
|
Temperature (°C and °F) |
-200 °C to 1350 °C |
|
Battery/fuse access |
Yes/Yes |
|
Elapse time clock |
Yes |
|
Time of day clock |
Yes |
|
Min-Max-Avg |
Yes |
|
Frequency |
Yes |
|
Duty cycle/pulse width |
Yes |
|
Info button on board help |
Yes |
|
Hold |
Yes |
|
Isolated optical interface |
Yes |
|
Auto/touch hold |
Yes |
|
Reading memory |
Yes |
|
Log to PC |
Yes |
|
On board logging with TrendCapture |
Yes |
|
Logging memory up to |
15,000 readings |
|
Wireless connectivity (optional) |
Yes |
|
Warranty |
Three years |
