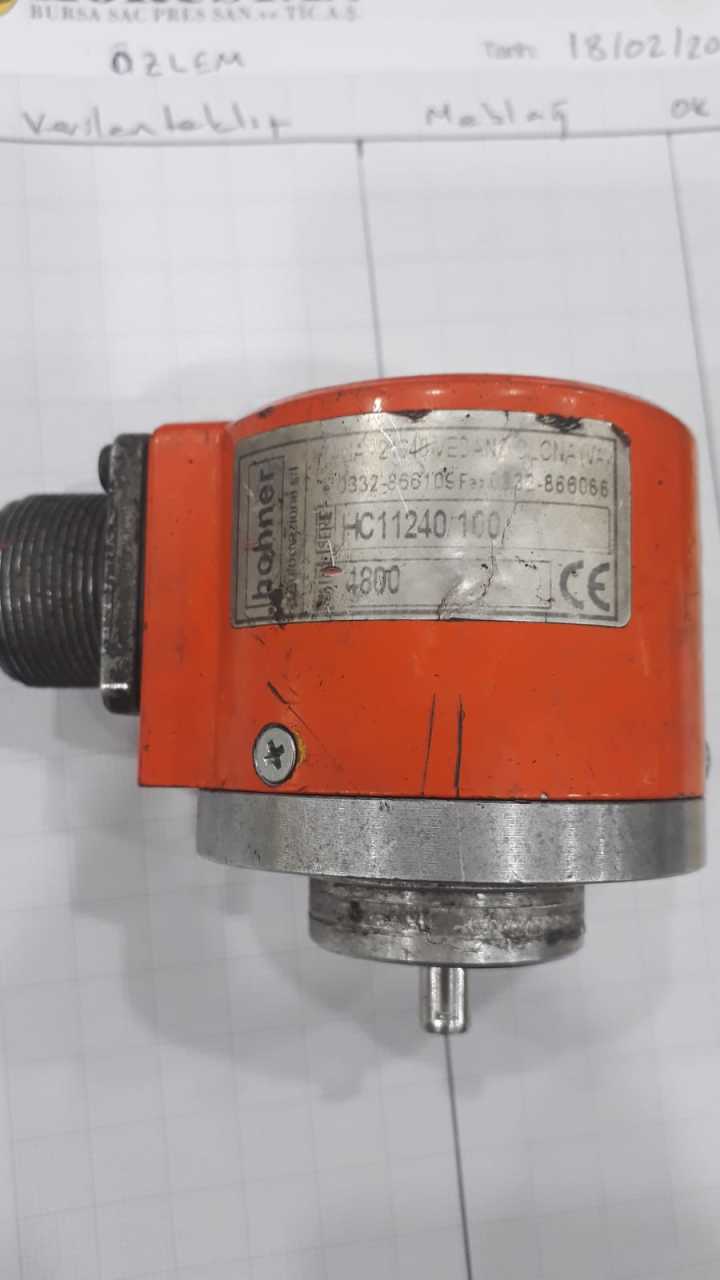

HC-11240.10/100 Encoder
9.074,68 TL
Kategori
Marka
Stok Kodu
CEFJLZ26
Garanti Süresi
12 Ay
Fiyat
207,63 EUR + KDV
* 913,14 TL den başlayan taksitlerle!
- Hohner HC-11240.10/100 Encoder
- Technical Data Connection Options
- Operating temp: - 20 ...+ 60 degrees C Cable 12 pin
- - 4 ...+ 140 degrees F PS GND Black 1
- On request: - 40 degrees PS 5 ... 24 V Red 2
- Max frequency: 150 kHz Output A White 3
- Current consumption: 50 mA (max.) Output B Blue 4
- Power supply: 5 - 24V Output O Yellow 5
- Weight: 21 oz (0.6 kg) Output A inv Green 6
- Protection: IP 65 (IP54 available) Output B inv Violet 7
- Housing: Aluminum Output O inv Brown 8
- Shaft: Stainless Steel
- Bearings: 2 x 6001 - (Z) (RS) Output
- Torque: 0.7 oz/in (5 N-cm) Diagram is shown with clockwise shaft rotation viewed from
- Humidity: Up to 98% permissible shaft end
- Speed: 6000 RPM max.
- Shock: 10g (6msec)
- Vibration: 5g (500 Hz)
- Shaft load: Radial / Axial 10 N
- Line driver output max: 50 mA per channel
- Max. ppr 5000
- Inertia: 30 gm-cm2
