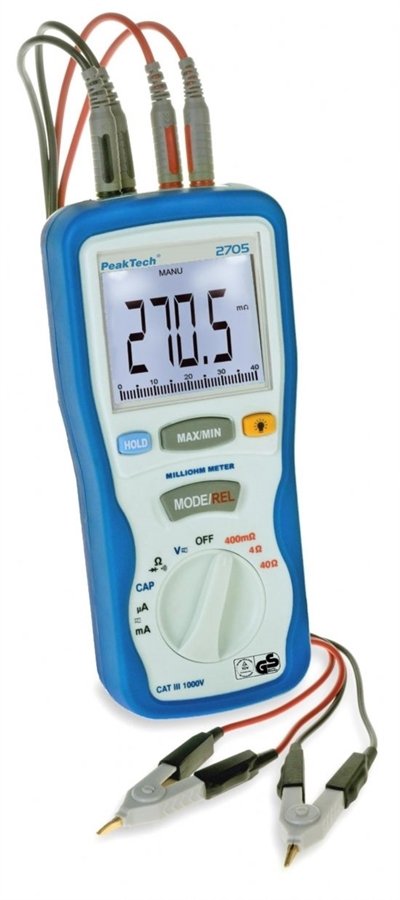

P2705 Dijital Miliohmmetre Ölcü Cihazı
6.789,32 TL
Kategori
Marka
Stok Kodu
AJRVX457
Fiyat
155,08 EUR + KDV
* 683,18 TL den başlayan taksitlerle!
- P2705 Dijital Miliohmmetre Ölcü Cihazı
- Ölçüm Degeri: 400 mΩ/4/40/Ω
- Digital-Milliohmmeter, 3 3/4-digit, 400 mΩ/4/40/Ω
- This milliohmmeter enables measurements of 1 mΩ up to 40 Ω. By passing a constant current through the device the voltage across can be determined.
- Following functions and wide range of applications are to be mentioned:
- Measuring the winding resistance of electric motors, generators, transformers, shunts, PCB tracks, switch and relay resistance
- Measuring the ring main continuity testing in industrial and domestic wiring installations
- Checking compression joints on overheads lines and Testing and maintenance of switchboard/substation equipment on such items as fuses, joints, contacts and bonds.
- 3 ¾ digit LCD-display (max 4000) with backlight and 42-segment bargraph
- Low battery indication
- MIN/MAX, DATA-hold
- Relative function, auto power off
- Diode- and continuity test
- Low resistance measurement with 4 wire kelvin test leads
- Safety: TÜV/GS, EN-61010-1; CAT III 1000 V
- Accessories: case, test leads with 2 mm-tips, batteries, 4 wire Kelvin test leads and manual
- Low resitance range400 mΩ/4/40 Ω - 0,1 mΩ; ± 1,0 % + 10 dgt.
- Test curent200 mA (400 mΩ) / 20 mA (4 Ω) / 2 mA (40 Ω)
- DC voltage400 mV/4/40/400/1000 V - 0,1 mV; ± 1,0 % + 5 dgt.
- AC voltage400 mV/4/40/400/1000 V - 0,1 mV; ± 1,2 % + 10 dgt.
- Resistance400 Ω/4/40/400 kΩ/4/40 MΩ/ - 0,1Ω/; ± 1,5 % + 2 dgt.
- Capacitance4/40/400 nF/4/40/400 µF/4/40 mF - 1 pf; 3,0 % + 10 dgt.
- DC current400/4000 µA/40/400 mA - 0,1 µA; ± 1,5 % + 5 dgt.
- AC current400/4000 µA/40/400 mA - 0,1 µA; ± 1,5 % + 5 dgt.
- Operation voltage6 x 1,5 V AA (UM-3) batteries
- Dimensions (WxHxD)92 x 200 x 50 mm
- Weight700 g
- EAN-134250569400568
