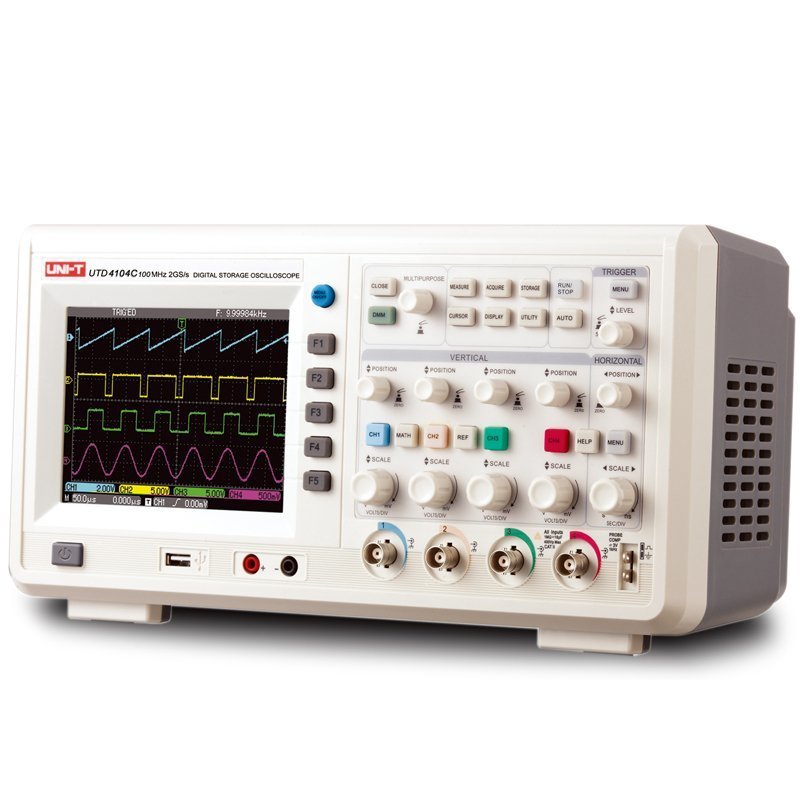

Unit UTD 4104C 4 Kanal 100Mhz Dijital Hafızalı Osiloskop
57.688,51 TL
Kategori
Stok Kodu
KLQRUZ28
Garanti Süresi
12 Ay
Fiyat
1.368,64 USD + KDV
* 5.804,91 TL den başlayan taksitlerle!
- Unit UTD 4104C 4 Kanal 100Mhz Dijital Hafızalı Osiloskop
- Genel özelikleri
- pecificationsUTD4104C-4CH
- Channels4
- Bandwidth100MHz
- Sample Rate2GS/s
- Rise Time≤3.5ns
- Memory Depth24kpts
- Vertical Sensitivity2mV/div~5V/div
- Timebase Range5ns/div~50s/div
- StorageSetup, Wave, Bitmap, CSV
- Trigger ModesEdge, Pluse, Video, Slope, Alternate
- InterfaceUSB Device, USB Host, Multimeter Interface
- Multimeter SpecificationsRangeBest Accuracy
- DC Voltage (V)400mV, 4V, 40V, 400V±(1% + 5)
- AC Voltage (V)4V, 40V, 400V±(1.2% + 5)
- DC Current (A)4mA, 40mA,400mA, 4A±(1% + 5)
- (External Convertor)4A: ± (1.5% + 5)
- Resistance (Ω)400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ±(1.5% + 5)
- Display Count4000
- Auto Range√
- General Characteristics
- Power100-240VAC, 45-440Hz
- Display5.7 inches 64K Color TFT LCD, 320×240
- Product ColorWhite and grey
- Product Net Weight3.8 Kg
- Product Size (W×H×D)337mm(W) × 190mm(H) × 180mm(D)
- Standard AccessoriesProbe×4 (1×,10× switchable), Current-to-Voltage Convertor, Test Leads, Power Cord, USB Cable, PC Software CD
- Standard Individual PackingGift Box, English Manual
- Standard Quantity Per Carton2pcs
- Standard Carton Measurement (L×W×H)540mm(L) × 425mm(W) × 325mm(H)
- Standard Carton Gross Weight13.7kg
