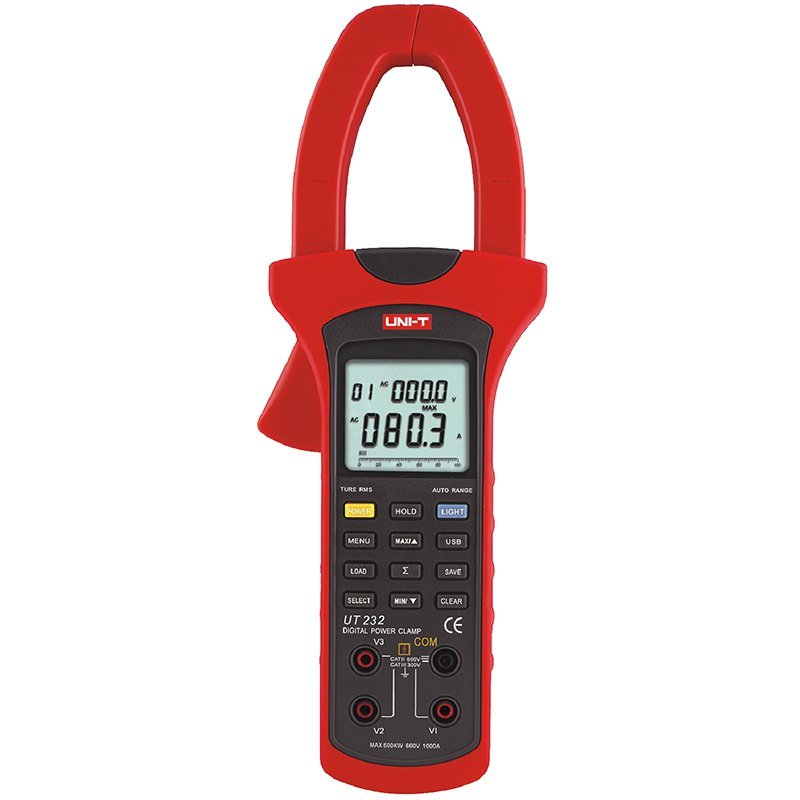

UT 232 Dijital 3 Faz Powermetre Ölçü Cihazi
- UT 232 Dijital 3 Faz Powermetre Ölçü Cihazi
|
Specifications |
Range |
Best Accuracy |
|
Model |
UT232 |
|
|
AC Current (A) |
40A/100A/400A/1000A |
±(2%+5) |
|
AC Voltage (V) |
15V/100V/300V/600V |
±(1.2%+5) |
|
Frequency (Hz) |
20Hz~500Hz |
√ |
|
Active Power (W) |
0.01KW-600KW |
±(3%+5) |
|
Apparent Power (VA) |
0.01KVA~600KVA |
±(3%+5) |
|
Reactive Power (VAr) |
0.01KVAr~600KVAr |
±(4%+5) |
|
Power Factor |
0.3~1 |
±(0.02%+2) |
|
Phase Angle (°) |
0° ～ 360° |
±1° |
|
Active Energy (Wh) |
1~9999KWh |
±(3%+2) |
|
Features |
||
|
Display Count |
|
10000 |
|
Auto Range |
|
√ |
|
Jaw Capacity |
|
50mm |
|
True RMS |
AC Voltage/AC Current |
√ |
|
Auto Power Off |
|
√ |
|
Low Battery Indication |
|
√ |
|
Data Hold |
|
√ |
|
MAX/MIN |
|
√ |
|
Data Logging |
|
99 |
|
USB Interface |
|
√ |
|
LCD Backlight |
|
√ |
|
Analogue Bar Graph |
|
51 |
|
Full Icon Display |
|
√ |
|
Single-Phrase 2-Wires |
|
√ |
|
3-Phrase 3-Wires |
|
√ |
|
3-Phrase 4-Wires |
|
√ |
|
Auto Calibration |
|
√ |
|
Input Impedance for DCV |
Around 10MΩ |
√ |
|
General Characteristic |
||
|
Power |
1.5V Batteries(LR6) ×4 |
|
|
LCD Size |
46mm X 42mm |
|
|
Product Colour |
Red and Grey |
|
|
Product Net Weight |
601g |
|
|
Product Size |
303mm X 112mm X39mm |
|
|
Standard Accessories |
Battery, Test Lead, Alligator Clip,USB Interface Cable,PC Software CD,Tool Box |
|
|
Standard Individual Packing |
Gift Box, English Manual |
|
|
Standard Quantity Per Carton |
5 PCs |
|
|
Standard Carton Measurement |
480mm X 372mm X 315mm (0.056 CBM Per Standard Carton) |
|
|
Standard Carton Gross Weight |
12Kg |
|
