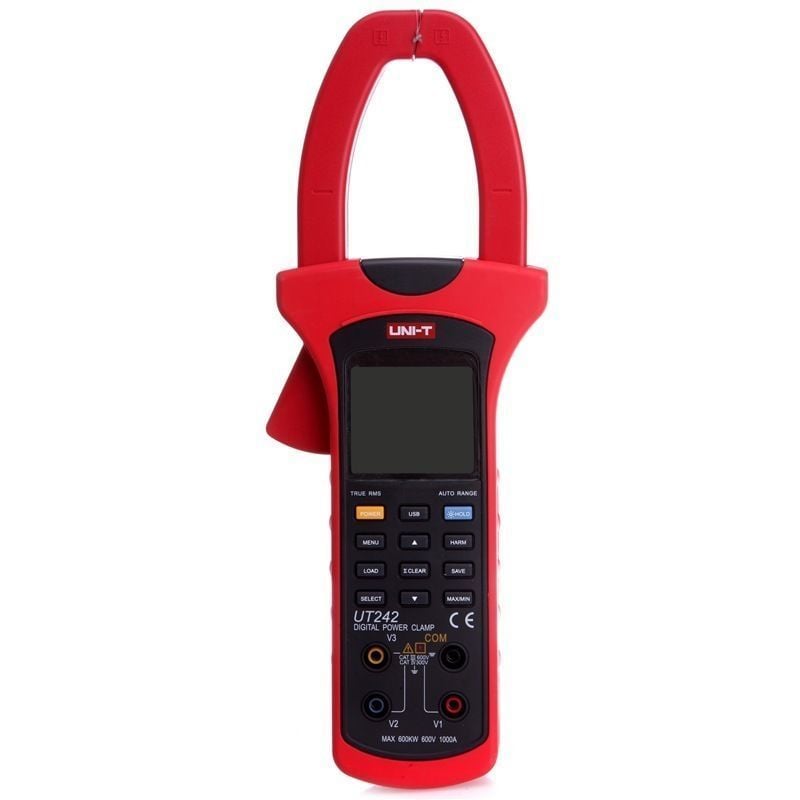

UT 242 AC 1000A True RMS Güç-Harmonik Pensampermetre Ölçü Cihazi
- Özellikleri :
- AC Akım ve Gerilim ölçümü
- Frekans ölçümü
- 1-20 Harmonik Analizi
- Aktif, Görünen, Reaktif Güç ölçümü
- Güç Faktörü, Faz Açısı ve AKtif Enerji ölçümü
- USB Arayüz
- Büyük LCD Ekran
- Otomatik Kapanma özelliği
- Kolay ve Rahat kullanım
- Taşıma çantası, Problar, Kullanım kitapçığı
- 1,5 V (LR6) x 4 Pil
|
Specifications |
Range |
Best Accuracy |
|
Model |
|
UT242 |
|
AC Current (A) |
50A/250A/1000A |
±(2%+5) |
|
AC Voltage (V) |
150V/300V/600V |
±(1.2%+5) |
|
Frequency (Hz) |
50Hz～60Hz |
√ |
|
Active Power (W) |
0.01KW～600KW |
±(3%+5) |
|
Apparent Power (VA) |
0.01KVAr～600KVAr |
±(4%+5) |
|
Reactive Power (VAr) |
0.01KVA～600KVA |
±(3%+5) |
|
Power Factor |
0.3～1 |
±(1%+2) |
|
Phase Angle (°) |
0° ～ 360° |
±1° |
|
Active Energy (Wh) |
1~9999KWh |
±(3%+5) |
|
Features |
||
|
Display Count |
|
10000 |
|
Auto Range |
|
√ |
|
Jaw Capacity |
|
50mm |
|
True RMS |
|
√ |
|
Auto Power Off |
|
√ |
|
Low Battery Indication |
|
√ |
|
Data Hold |
|
√ |
|
MAX/MIN |
|
√ |
|
Data Logging |
|
999 |
|
USB Interface |
|
√ |
|
LCD Backlight |
|
√ |
|
Full Icon Display |
|
√ |
|
Single-Phrase 2-Wires |
|
√ |
|
3-Phrase 3-Wires |
|
√ |
|
3-Phrase 4-Wires |
|
√ |
|
Harmonic Analysis |
|
1～20 |
|
Setup |
|
√ |
|
Input Protection |
|
√ |
|
Input Impedance for DCV |
Around 5MΩ |
√ |
|
General Characteristic |
||
|
Power |
1.5V Batteries（LR6）×4 |
|
|
LCD Size |
46mm X 42mm |
|
|
Product Colour |
Red and Grey |
|
|
Product Net Weight |
601g |
|
|
Product Size |
303mm X 112mm X 39mm |
|
|
Standard Accessories |
Test Lead, Batteries, Alligator Clips, USB Interface Cable, Tool Box, PC Software CD |
|
|
Standard Individual Packing |
Gift Box, English Manual |
|
|
Standard Quantity Per Carton |
5 PCs |
|
|
Standard Carton Measurement |
480mm X 372mm X 315mm (0.056CBM Per Standard Carton) |
|
|
Standard Carton Gross Weight |
12Kg |
|
