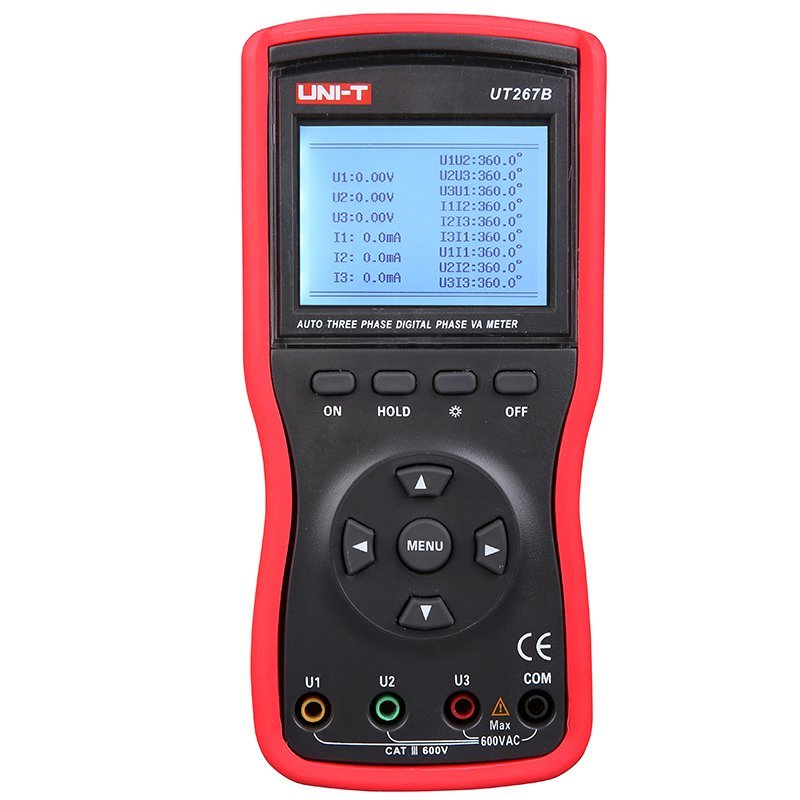

UT 267B Dijital Akıllı 2/3 Fazlı Fazmetre Ölçü Cihazi
- UT 267B Dijital Akıllı 2/3 Fazlı Fazmetre Ölçü Cihazi
|
Specifications |
Range |
Accuracy |
|
Type |
|
UT267B |
|
AC Current (A) |
0.0mA～20.0A |
±(1.5%+3) |
|
AC Voltage (V) |
0.00V～600V |
±(1.5%+3) |
|
Frequency (Hz) |
45Hz～65Hz |
±(2%+3) |
|
Active Power (W) |
0.0W～12kW |
±(3%+3) |
|
Apparent Power (VAr) |
0.0VA～12kVA |
±(3%+3) |
|
Reactive Power (VA) |
0.0VAR～12kVAR |
±(3%+3) |
|
Power Factor |
-1~1 |
±0.03 |
|
Phase Angle (°) |
0.0°～360° |
±1° |
|
Current Vector Sum |
0mA～60.0A |
√ |
|
Phase Sequence Test |
Order:U1→U2→U3 or I1→I2→I3 Positive Change; U1→U3→U2 or I1→I3→I2 to reverse |
√ |
|
Features |
||
|
Display Mode |
LCD: 240 dots×160 dots |
√ |
|
Clamp Size |
Acuminate Current Clamp: 7.5mm×13mm (Optional), Round Jaw Current Clamp: 35mm×40mm(Optional) |
√ |
|
Auto Range |
|
√ |
|
RS-232 |
|
√ |
|
Data Storage |
|
99 |
|
LCD Backlight |
|
√ |
|
Data Hold |
|
√ |
|
Input Impedance for DCV |
≥2MΩ |
√ |
|
Auto Power Off |
About 15 Minutes |
√ |
|
Low Battery Indication |
|
√ |
|
Sampling Rate |
About 0.5 times/second |
√ |
|
General Characteristics |
||
|
Power |
1.5V Alkaline dry battery (5#) X 6 |
|
|
Product Color |
Red and grey |
|
|
Product Weight |
550g |
|
|
Product Size |
196mm X 92mm X 54mm |
|
|
Standard Accessories |
Batteries, Current Clamp: 3pcs, Test Line: 4pcs (1 yellow, 1 green, 1 red, 1 black), Tool Box |
|
|
Standard Individual Packing |
Gift Box, User Manual |
|
|
Standard Quantity Per Carton |
6pcs |
|
|
Standard Carton Measurement |
530mm X 380mm X 395mm |
|
|
Standard Carton Gross Weight |
18kg |
|
