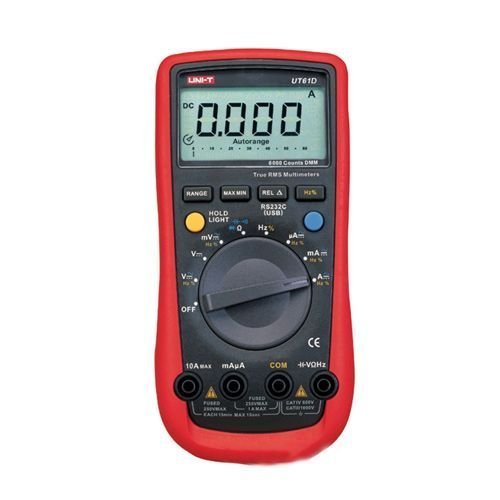

UT 61D unit Djital Multimetre Ölçü Cihazı
1.996,77 TL
Kategori
Stok Kodu
HRSWY257
Garanti Süresi
12 Ay
Fiyat
47,37 USD + KDV
* 200,93 TL den başlayan taksitlerle!
- UT 61D unit Djital Multimetre Ölçü Cihazı
- UNI-T UT61C
- SPECIFICATION:
- DC Voltage: 60mV / 600mV +/- (0.8%+3)6V / 60V / 600V +/- (0.5%+1) 1000V +/- (1.0%+3)
- AC Voltage: 45Hz ~ 1kHz 60mV / 600mV +/- (1.2%+5) 6V / 60V / 600V +/- (1.0%+3) 750V +/- (1.2%+5)
- > 1kHz ~ 3kHz
- 60mV / 600mV +/- (2.0%+5)
- 6V / 60V +/- (1.5%+5)
- 600V +/- (3.0%+5)
- 750V +/- (3.0%+5)
- DC Current:
- 600µA / 6000µA +/- (1.0%+3)
- 60mA / 600mA +/- (1.0%+3)
- 6A / 10A +/- (1.2%+5)
- AC Current:
- 45Hz ~ 1kHz
- 600µA / 6000µA +/- (1.2%+5)
- 60mA / 600mA +/- (1.5%+5)
- 6A / 10A +/- (2.0%+5)
- >1kHz ~ 3kHz
- 600µA / 6000µA +/- (1.5%+5)
- 60mA / 600mA +/- (2.0%+5)
- 6A / 10A +/- (3.0%+5)
- Resistance:
- 600 Ohm +/- (1.2%+2)
- 6 kOhm / 60 kOhm / 600 kOhm +/-(1.0%+2)
- 6 MOhm +/- (1.2%+2)
- 60 MOhm +/- (1.5%+2)
- Capacitance:
- 40nF +/- (3.0%+5)
- 400nF / 4µF / 40µF +/- (3.0%+5)
- 400µF +/- (4.0%+5)
- 4000µF: only reference
- Frequency: 10Hz ~ 10MHz +/- (0.1%+4)
- Duty Cycle: 0.1% ~ 99.9%
- SPECIAL FUNCTIONS:
- Manual Ranging
- Diode
- Continuity Buzzer
- Data Hold
- True RMS
- Max/Min Mode
- Display Backlight
- REL
- Sleep Mode
- RS232(USB)
- Fuse
- Input Impedance for DC Voltage Measurement Around 10 MOhm
- Low Battery Display < 7.5V
- CHARACTERISTICS:
- Power: 9V Battery (6F22) x 1
- LCD Size: 65 x 43mm
- Product Net Weight: 370g
- Product Size: 180 x 87 x 47mm
