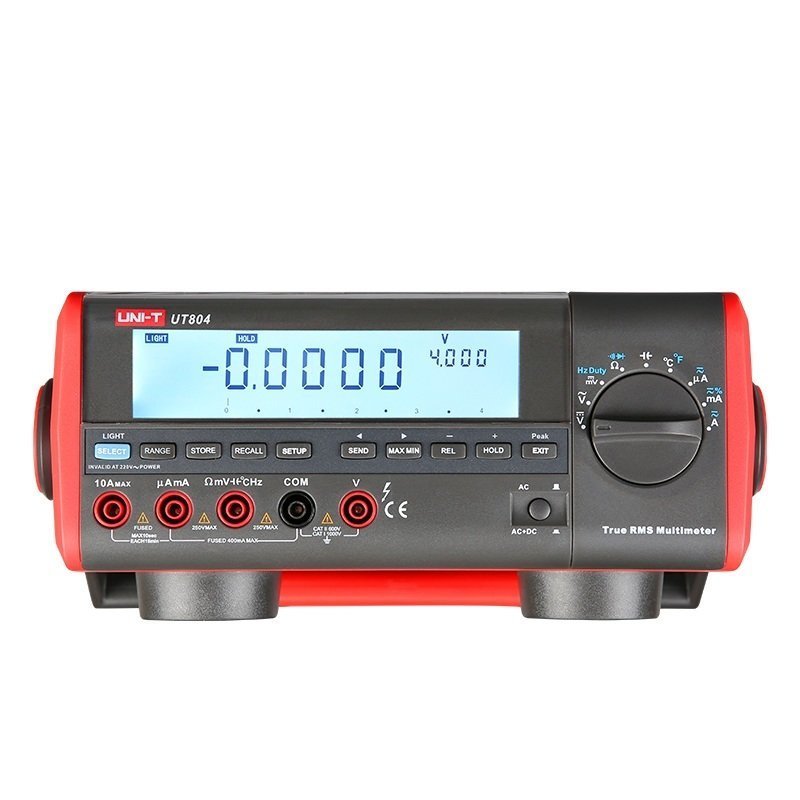

UT 804 Digit Masa Üstü Dijital Multimetre Ölçü Cihazi
8.644,35 TL
Kategori
Stok Kodu
BKLMVXZ2
Garanti Süresi
12 Ay
Fiyat
205,08 USD + KDV
* 869,84 TL den başlayan taksitlerle!
- UT 804 Digital Masa Üstü Dijital Multimetre Ölçü Cihazi
- Ürün Özellikleri
- Max.Dc Akım:10 Amper
- Max.Ac Akım:10 Amper
- Max.Dc Volt:1000 Dc Volt
- Max.Ac Volt:1000 Ac Volt
- Kullanım Alanı:Masaüstü Multimetre
- Genel Özelikleri:
- SpecificationsRangeAccuracy
- Model UT804
- DC Voltage (V)400mV/4V/40V/400V/1000V ±(0.025%+5)
- AC Voltage (V)4V/40V/400V/1000V ±(0.4%+30)
- DC Current (A)400μA/4000μA/40mA/400mA/10A±(0.1%+15)
- AC Current (A)400μA/4000μA/40mA/400mA/10A±(0.7%+15)
- Resistance (Ω)400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ±(0.3%+40)
- Capacitance (F)40nF/400nF/4μF/40μF/400μF/4mF/40mF±(1%+20)
- Frequency (Hz)40Hz/400Hz/4kHz/40kHz/400kHz
- /4MHz/40MHz/400MHz±(0.01%+8)
- Temperature (°C)-40 °C ～ 1000°C±(1%+30)
- Temperature (°F)-40°F～1832°F±(1.5%+50)
- Features
- Max Display 39999
- Auto Range √
- True RMS √
- Bandwidth (Hz)100kHz √
- Duty Ratio0～100%±(1.0%+40)
- Diode √
- Auto Power Off √
- Continuity Buzzer √
- Low Battery Indication √
- Data Hold √
- Relative Measurement √
- MAX/MIN √
- Peak Hold √
- Data Storage 9999
- Data Recall √
- RS-232 √
- USB interface √
- LCD Double Backlight √
- Analogue Bar Graph 81
- Function Setup √
- Input Protection √
- Input Impedance400mV range: around 4GΩ, other ranges: 10MΩ√
- Auto/Manual Alarm √
- 4 - 20mA0～100%±(1%+50)
- Voltage and Current: AC+DC Measurement √
- General Characteristics
- PowerAC 220V/50Hz or 1.5V batteries (2#) × 6
- LCD Size128mm × 28mm
- Product ColorRed and grey
- Product Net Weight2.2kg
- Product Size310mm × 240mm × 105mm
- Standard AccessoriesTest Lead, AC 220V Power Cord, Software CD, RS-232 Interface Cable, USB Interface Cable, Alligator Clip, Point Contact Temperature Probe, Multi-purpose Socket
- Standard Individual PackingGift Box, User Manual
- Standard Quantity Per Carton4pcs
- Standard Carton Measurement 680mm × 365mm × 320mm
- Standard Carton Gross Weight15kg
