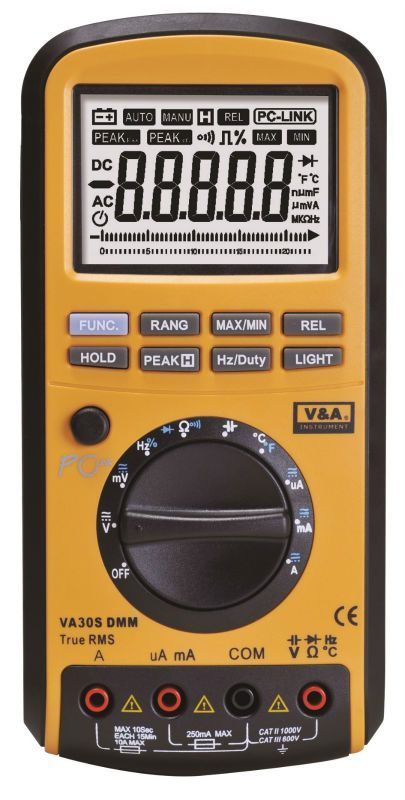

VA 30S Dijital Multimetre Ölçü Cihazi
3.688,14 TL
Kategori
Stok Kodu
GJKMQRU2
Garanti Süresi
12 Ay
Fiyat
87,50 USD + KDV
* 371,12 TL den başlayan taksitlerle!
- VA 30S Dijital Multimetre Ölçü Cihazi
- El Tipi Multimetreler
- VA 30S 22000 Count Akıllı Dijital Multimetre
- Özellikler :
- 22000 counts measurement
- ACV and DCV measurements reach up to 1000V.
- DC measurement accuracy reaches up to 0.01%.
- 0.01 Ω resistance resolution and 10μV voltage resolution.
- Linear frequency measurement, logic frequency/duty ratio measurement.
- Capacitance measurement from 0.001nf to 220mF.
- AC true RMS measurement.（only for model VA30S）
- Temperature Measurement.
- Maximum value/minimum value measurement, Relative measurement, PEAK max/min measurement.
- 46-segment analog bar display.
- Automatic shutdown/continuous working mode selection.
- Back light control.
- PC-LINK: USB infrared interface.
- Display, record and graphics software of computer.
- Overload protection.
- Sound alarm for misplug.
- Secondary plasticizing meter shell, with insulating performance reaching 1000V CAT II
- DC Voltage: 220mV ±0.1%,2.2V/22V/220V/1000V ±0.2%.
- AC Voltage: 220mV ±0.5%,2.2V/22V/220V/1000V ±0.8%.
- DC Current: 220uA/2200μA/22mA/220mA ±0.3%,10A ±0.8%.
- AC Current: 220uA/2200μA/22mA/220mA ±1.0%,10A ±1.5%.
- Resistance: 220Ω ±0.5%,2.2KΩ/22KΩ ±0.8%,220KΩ/2.2MΩ ±1.0%,
- 22MΩ ±1.2%,220MΩ ±1.5%.
- Capacitance:22nF/220nF/2.2μF ±1.0%,22μF/220μF ±1.5%,2.2mF±2.5%,
- 22mF ±3.0%,220mF±5.0%.
- Temperature: -50℃~ 50℃ ±3.0%,50℃~400℃ ±1.0%,400℃~1000℃ ±2.5%.
- Logic Frequency: 2Hz~10MHz ±0.05%.
- Linear Frequency: 2Hz~200KHz ±0.05%.
- Duty Cycle: 5%~94.9% ±2.0%.
- Accessories included
- Free 1.5V x6 AAA batteries
- Free carrying bag
- High quality double insulation test leads
- User's Manual
- Free USB interface cable
- Free Software
- Special FunctionsVA30VA30S
- True RMS Measurement √
- Diode Test√√
- Continuity Check√√
- Auto Power Off√√
- Low Power Indication√√
- Back Light√√
- Data Hold√√
- Peak Hold√√
- Relative Measurement√√
- MAX/MIN Value Measurement√√
- Misplug Alarm√√
- Max. Display2200022000
